INGCO DM36002 True RMS Digital Multimeter 600V 4000 Counts NCV with Flashlight

INGCO DM36002 – True RMS Digital Multimeter 600V 4000 Counts with NCV & Flashlight

The INGCO DM36002 is a reliable and feature-packed True RMS digital multimeter with a 4000-count display, designed for electricians, technicians, and serious DIYers. Measuring DC/AC voltage up to 600V, DC current up to 10A, resistance up to 40MΩ, and featuring NCV (Non-Contact Voltage) detection, diode test, battery test, data hold, backlight, and a built-in flashlight, it covers all essential electrical measurement needs on site or in the workshop. Comes with 2x LR03 AAA batteries, packed in double blister packaging.

Key Features

• True RMS 4000-Count Display – Accurate measurements on both pure and distorted AC waveforms
• 600V CAT III Safety Rating – Safe for use in residential, commercial, and light industrial electrical installations
• NCV (Non-Contact Voltage) Detection – Detect live voltage without touching the conductor for safe, fast checks
• DC/AC Voltage: 400mV/4V/40V/600V – Wide range covers batteries, circuits, and mains voltage
• DC Current: 40mA/400mA/10A – Measures small signal and high-current loads
• Resistance: 400Ω to 40MΩ (6 ranges) – Full resistance measurement for components and wiring
• Diode Test – Quickly check diode polarity and forward voltage
• Battery Test – Test battery condition directly
• Data Hold – Freeze the display reading for easy recording in awkward positions
• Backlit Display – Clear readings in low-light conditions
• Built-in Flashlight – Illuminate dark panels, cabinets, and junction boxes while measuring
• Low Battery Indication – Alerts when battery power is running low
• 2x LR03 AAA Batteries Included – Ready to use straight out of the pack

Applications

• Electrical installation and maintenance
• Panel and circuit board testing
• Appliance and motor winding testing
• Battery and component checking
• HVAC and refrigeration electrical testing

Specifications

• Model: DM36002
• Brand: INGCO
• Display: True RMS, 4000 counts
• DC Voltage: 400mV / 4V / 40V / 600V
• AC Voltage: 400mV / 4V / 40V / 600V
• DC Current: 40mA / 400mA / 10A
• Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Functions: NCV, Diode Test, Battery Test, Data Hold, Backlight, Flashlight, Low Battery Indication
• Safety Rating: 600V CAT III

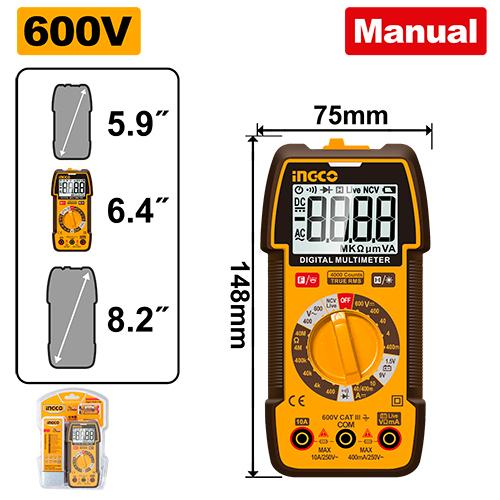

• Dimensions: 148mm x 75mm
• Battery: 2x LR03 AAA (included)
• Packaging: Double Blister
