INGCO DM3069 3-Piece Electrical Test Kit – AC Clamp Meter + Digital Multimeter + Voltage Detector

INGCO DM3069 – 3-Piece Electrical Test Kit (Clamp Meter + Multimeter + Voltage Detector)

The INGCO DM3069 is a comprehensive 3-piece electrical testing kit bundling a True RMS AC clamp meter (DCM62001), a True RMS digital multimeter (DM360011), and an AC voltage detector (VD100091) — everything an electrician or technician needs for everyday site testing, fault finding, and installation work. All three tools are powered by the included 6x AAA batteries and packed together in a double blister for safe storage and transport.

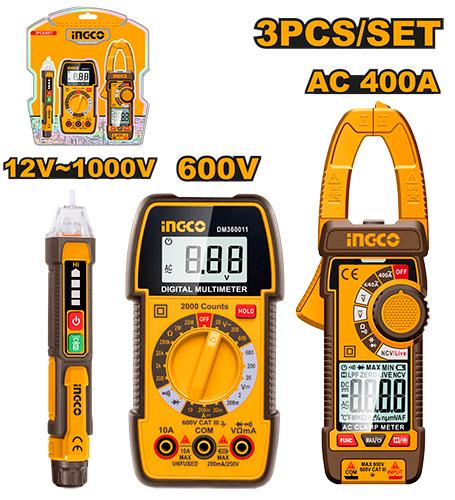

What’s in the Kit

• 1x Digital AC Clamp Meter (DCM62001)
• 1x Digital Multimeter (DM360011)
• 1x AC Voltage Detector (VD100091)
• 6x R03 AAA Batteries

1. Digital AC Clamp Meter – DCM62001

• True RMS, 4000-count display
• AC Current: 4A / 40A / 400A
• DC/AC Voltage: 400mV / 4V / 40V / 600V
• Resistance: 400Ω to 40MΩ (6 ranges)
• Capacitance: 4nF to 4mF (7 ranges)
• NCV, Diode Test, Data Hold, Auto Power Off

2. Digital Multimeter – DM360011

• True RMS, 2000-count display
• DC Voltage: 200mV / 2V / 20V / 200V / 600V
• AC Voltage: 20V / 200V / 600V
• DC Current: 20mA / 200mA / 10A
• Resistance: 200Ω to 20MΩ (6 ranges)
• 600V CAT III safety rating

3. AC Voltage Detector – VD100091

• AC Voltage: 12V–1000V (High sensitivity) / 48V–1000V (Low sensitivity)
• Frequency: 50/60Hz
• Sound and light alarm for live voltage detection
• Built-in white LED flashlight
• Non-contact, no bare conductor contact required

Applications

• Electrical installation and maintenance
• Panel, switchboard, and circuit testing
• Live wire detection and safety checks
• AC current measurement on motors and loads
• Resistance and capacitance testing
• General electrical fault finding

Kit Specifications

• Model: DM3069
• Brand: INGCO
• Contents: 1x DCM62001 Clamp Meter, 1x DM360011 Digital Multimeter, 1x VD100091 Voltage Detector
• Batteries: 6x R03 AAA (included)
• Packaging: Double Blister
