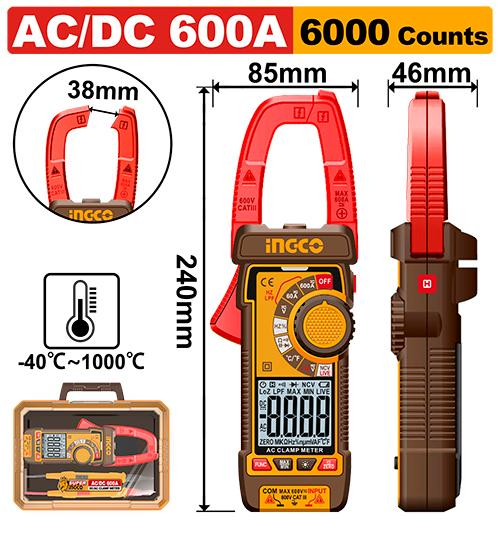

INGCO DCM66002 True RMS DC/AC Clamp Meter 600A 6000 Counts with Temperature & LPF

INGCO DCM66002 – True RMS DC/AC Clamp Meter 600A 6000 Counts with Temperature, LPF & Phase Function

The INGCO DCM66002 is a professional-grade True RMS DC/AC clamp meter with a 6000-count display and 38mm jaw opening, capable of measuring DC and AC current up to 600A. Featuring a comprehensive set of measurement functions including DC/AC voltage, resistance, capacitance, frequency, temperature (−40°C to 1000°C), LPF (Low Pass Filter) for VFD drives, Lowz (low impedance) voltage measurement, phase function, NCV, diode test, data hold, and auto power off, it is the complete tool for advanced electrical and industrial testing. Comes with 3x LR03 AAA batteries in a durable plastic carry case.

Key Features

• True RMS 6000-Count Display – High-resolution accurate measurements on pure and distorted waveforms
• DC/AC Current: 60A / 600A – Measures both DC and AC current up to 600A on live conductors without circuit break
• 38mm Jaw Opening – Fits large-diameter cables, busbars, and industrial conductors
• 600V CAT III / 300V CAT IV Safety Rating – Safe for industrial, commercial, and utility electrical work
• DC/AC Voltage: 600mV to 600V (4 ranges) – Full measurement range from millivolt signals to mains voltage
• Resistance: 600Ω to 60MΩ (6 ranges) – Comprehensive resistance testing
• Capacitance: 10nF to 100mF (7 ranges) – Wide capacitance range for motors, HVAC, and electronics
• Frequency: 10Hz to 10MHz (7 ranges) – Measures signal and power frequency across a wide range
• Temperature: −40°C to 1000°C / −40°F to 1832°F – Thermocouple temperature measurement for motors, HVAC, and process equipment
• LPF (Low Pass Filter) for VFD – Accurate voltage and current measurement on variable frequency drive outputs
• Lowz (Low Impedance) Voltage – Prevents ghost voltage false readings on de-energised circuits
• Phase Function – Identify phase sequence and rotation for 3-phase motor and panel work
• NCV Detection – Non-contact live voltage detection for safe and fast checks
• Diode Test – Check diode polarity and forward voltage
• Data Hold – Freeze display for easy reading in confined spaces
• Auto Power Off – Saves battery when meter is left idle
• Low Battery Indication – Alerts before battery is exhausted
• 3x LR03 AAA Batteries Included – Ready to use from the box
• Plastic Carry Case Included – Durable protection for site and workshop use

Applications

• Industrial motor and panel current testing (AC & DC)
• VFD (variable frequency drive) output measurement
• 3-phase electrical installation and phase rotation checking
• HVAC compressor and motor testing
• Temperature measurement on motors and process equipment
• Advanced electrical fault finding and commissioning

Specifications

• Model: DCM66002
• Brand: INGCO
• Display: True RMS, 6000 counts
• Jaw Opening: 38mm
• Dimensions: 240mm x 85mm x 46mm
• DC/AC Current: 60A / 600A
• DC/AC Voltage: 600mV / 6V / 60V / 600V
• Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
• Capacitance: 10nF / 100nF / 1000nF / 10μF / 1000μF / 10mF / 100mF
• Frequency: 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz
• Temperature: −40.0°C to 1000.0°C / −40.0°F to 1832.0°F
• Functions: NCV, LPF (VFD), Lowz, Phase Function, Diode Test, Data Hold, Auto Power Off, Low Battery Indication
• Safety Rating: 600V CAT III / 300V CAT IV
• Battery: 3x LR03 AAA (included)
• Packaging: Plastic Carry Box
