INGCO DCM62001 True RMS Digital AC Clamp Meter 400A 4000 Counts NCV with Capacitance Test

INGCO DCM62001 – True RMS Digital AC Clamp Meter 400A 4000 Counts

The INGCO DCM62001 is a professional True RMS digital AC clamp meter with a 4000-count display and 24mm jaw opening, designed for measuring AC current up to 400A without breaking the circuit. With DC/AC voltage up to 600V, resistance up to 40MΩ, and a 7-range capacitance function up to 4mF, it covers all essential electrical and electronic measurement needs. NCV detection, diode test, data hold, auto power off, and low battery indication make it a complete tool for electricians, HVAC technicians, and panel testing professionals. Packed in double blister with 2x LR03 AAA batteries included.

Key Features

• True RMS 4000-Count Display – Accurate measurements on both pure and distorted AC waveforms
• AC Current: 4A / 40A / 400A – Measures low signal to high load currents without breaking the circuit
• 24mm Jaw Opening – Fits over standard cables and busbars up to 24mm diameter
• 600V CAT III Safety Rating – Safe for residential, commercial, and light industrial electrical work
• DC/AC Voltage: 400mV / 4V / 40V / 600V – Full voltage range from battery to mains
• Resistance: 400Ω to 40MΩ (6 ranges) – Complete resistance measurement for wiring and components
• Capacitance: 4nF to 4mF (7 ranges) – Test capacitors in motors, HVAC, and electronic circuits
• NCV (Non-Contact Voltage) Detection – Detect live voltage safely without touching conductors
• Diode Test – Check diode polarity and forward voltage drop
• Data Hold – Freeze the display for easy reading in awkward positions
• Auto Power Off – Extends battery life when the meter is left idle
• Low Battery Indication – Alerts when battery replacement is needed
• 2x LR03 AAA Batteries Included – Ready to use out of the pack

Applications

• AC current measurement on live cables and motors
• Panel, switchboard, and distribution board testing
• HVAC compressor and motor current testing
• Capacitor testing in AC motors and fan circuits
• Electrical installation and maintenance
• Industrial equipment fault finding

Specifications

• Model: DCM62001
• Brand: INGCO
• Display: True RMS, 4000 counts

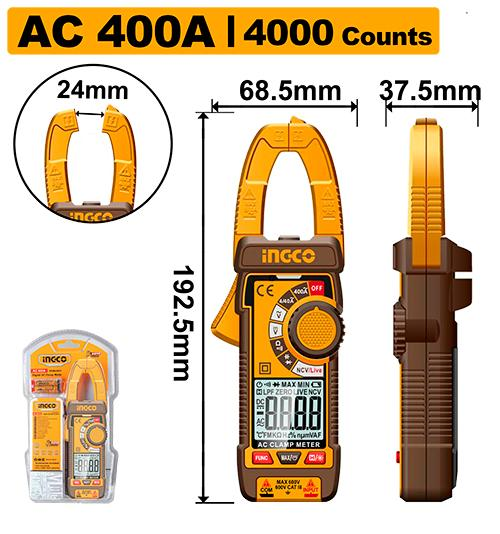

• Jaw Opening: 24mm
• Dimensions: 192.5mm x 68.5mm x 37.5mm
• AC Current: 4A / 40A / 400A
• DC Voltage: 400mV / 4V / 40V / 600V
• AC Voltage: 400mV / 4V / 40V / 600V
• Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Capacitance: 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF
• Functions: NCV, Diode Test, Data Hold, Auto Power Off, Low Battery Indication
• Safety Rating: 600V CAT III
• Battery: 2x LR03 AAA (included)
• Packaging: Double Blister
